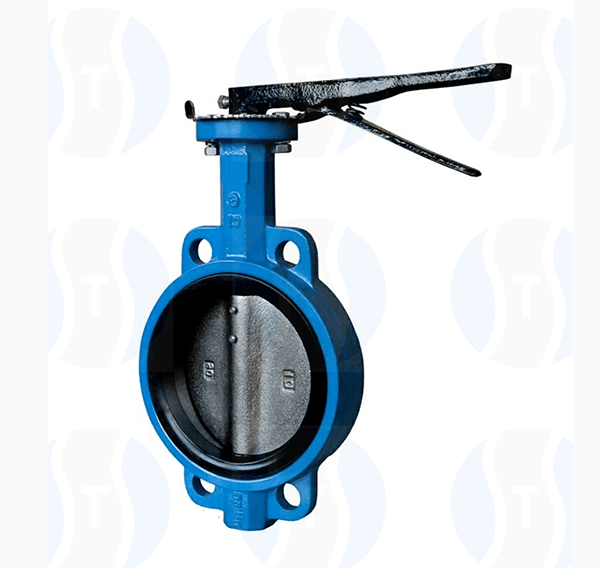

Centric Butterfly Valve

(Click to Enlarge)

Technical Specifications
Size Range	40 mm to 600 mm
Class	PN 10/ PN 16
Design Standard	API 609/ BS EN 593/ ISO 7005/ IS 13095
Testing Standard	API 598, BS EN 12266-1,2
Face to Face	Face to Face- BS EN 558
Body	IS 210 Gr. FG 220-CI, ASTM A216 Gr. WCB
Trims	ASTM A276 TYPE 410/ 304/ 316
Seat	EPDM/ NITRILE/ HYPLON/ VITON/ SILICON
Ends	Wafer / Lugged
Operation	Hand Wheel, Gear, Pneumatic, Electric actuator & Others as per customer requirement.
Optional Features	Stem Extension, Locking Arrangement
