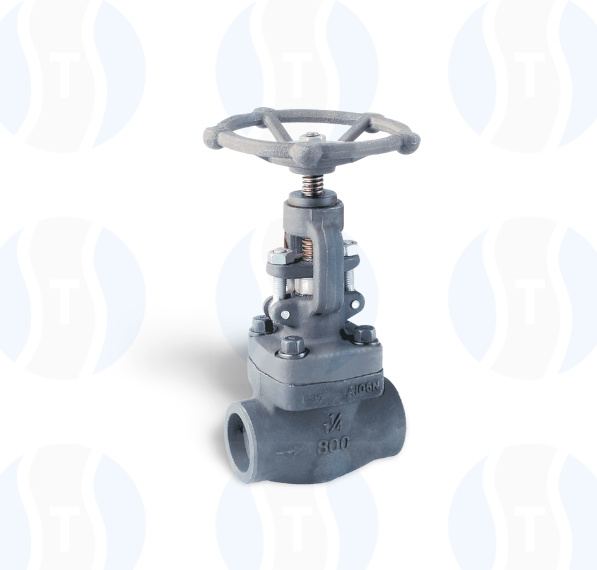

Forged Globe Valve

(Click to Enlarge)

Technical Specifications
Size Range	15 mm to 50 mm
Class	800, 1500
Design Standard	BS EN ISO 15761/ ASME B16.34
Testing Standard	API 598 / BS EN 12266-1
Face to Face	ASME B16.10
Body/Bonnet/Cover	ASTM A105, ASTM A182 Gr. F304/ F316 /F11 /F22 /F5 /F9
Trims	ASTM A276 TYPE 410/ 304 /316
Ends	Socket Weld End, Screwed End, Butt Weld End ,Flanged End
Operation	Hand Wheel, Gear, Pneumatic, Electric actuator & Others as per customer requirement.
Optional Features	IBR, Locking Arrangement, Jacketed , Cryogenic, Stem Extension
