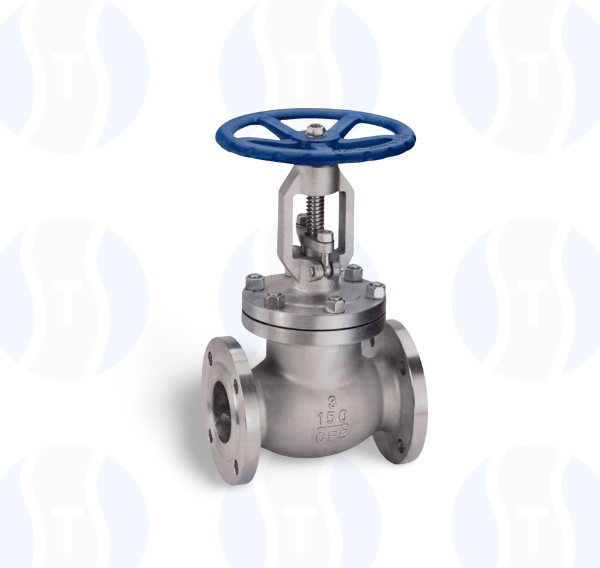

Cast Steel Globe Valve

(Click to Enlarge)

Technical Specifications
Size Range	15 mm to 300 mm
Class	150, 300, 600
Design Standard	BS 1873/ BS EN ISO 15761/ ASME B16.34
Testing Standard	API 598 / BS EN 12266-1
Face to Face	ASME B16.10
Body & Bonnet	ASTM A216 Gr. WCB, ASTM A217 Gr. WC6/ WC9/ C5/ C12, ASTM A352 Gr. LCB, ASTM A351 Gr. CF8/ CF8M/ CF3/ CF3M
Trims	ASTM A276 TYPE 410/ 304/ 316
Ends	Flanged End/ Butt Weld End
Operation	Hand Wheel, Gear, Pneumatic, Electrical Actuator & others as per customer requirement
Optional Features	IBR, Locking Arrangement, Jacketed, Cryogenic, Stem Extension
