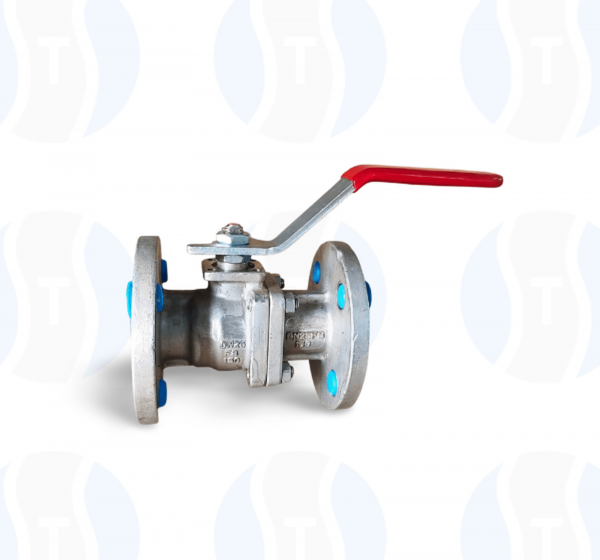

Floating Ball Valve

Floating Ball Valve

Ball Valve 2 peice#1

(Click to Enlarge)

Technical Specifications
Size Range15 mm to 200 mm
Class150, 300, 600
Design StandardBS EN ISO 17292 (BS 5351) / ASME B16.34
Testing StandardAPI 598 / BS EN 12266-1
Face to FaceASME B16.10
Body &



End Piece

ASTM A216 Gr. WCB, ASTM A352 Gr. LCB, ASTM A351 Gr. CF8/ CF8M/ CF3/ CF3M, ASTM A890/A995 4A/5A, ASTM A743 CN7M
BallCA 15/ CF8/ CF8M/ CF3/ CF3M/ CN7M /DUPLEX
EndsFlanged End / Butt Weld End
OperationLever, Gear, Pneumatic, Electric actuator & Others as per customer requirement.
Optional FeaturesIBR, Locking Arrangement, Fire Safe, Metal Seat/ Soft Seat, Tungsten Carbide Coating, Cryogenic, Stem Extension
