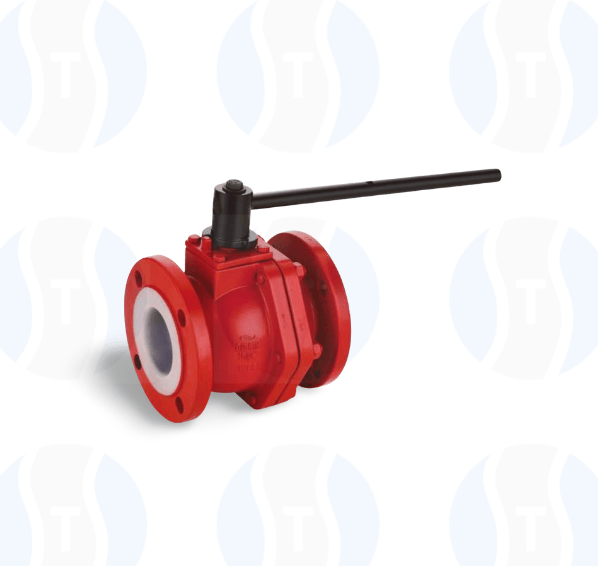

Lined Ball Valve

(Click to Enlarge)

Technical Specifications
Size Range	15 mm to 200 mm
Class	150
Design Standard	BS 5351/ EN ISO 17292
Testing Standard	API 598
Face to Face	ASME B16.10
Body & Cover	ASTM A216 Gr. WCB, ASTM A351 Gr. CF8/ CF8M/ CF3/ CF3M
Lining Material	PFA, FEP
Lining Thickness	3mm to 5mm
Ends	Flanged End
Operation	Manual Lever, Gear Box, Pneumatic, Electric actuator & Others as per customer requirement.
Optional Features	Limit Switch, Solenoid Valve, Electro/Pneumatic-Pneumatic Valve Positioner, Gear Box with Locking arrangement
