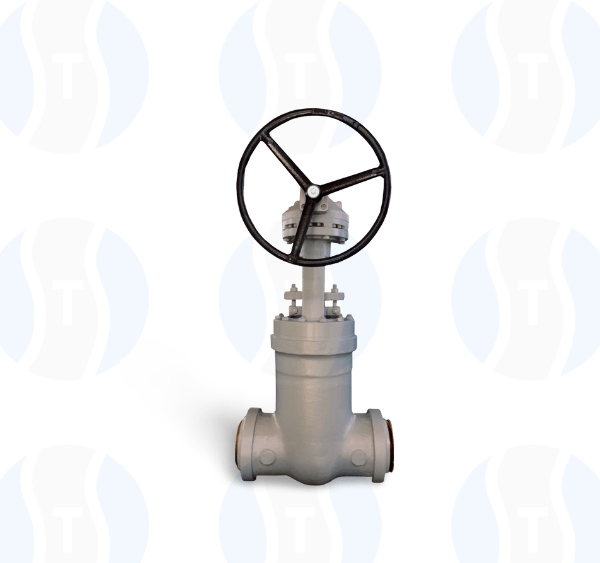

Pressure Seal Gate Valve

(Click to Enlarge)

Technical Specifications
Size Range	50 mm to 300 mm
Class	900, 1500, 2500
Design Standard	API 600 / ASME B16.34
Testing Standard	API 598 / BS EN 12266-1
Face to Face	ASME B16.10
Body & Bonnet	ASTM A216 Gr. WCB, ASTM A217 Gr. WC6/ WC9/ C5/ C12, ASTM A352 Gr. LCB, ASTM A351 Gr. CF8/ CF8M/ CF3/ CF3M
Trims	ASTM A276 TYPE 410/ 304/ 316
Ends	Flanged End/ Butt Weld End
Operation	Hand Wheel, Gear, Pneumatic, Electric actuator & Others as per customer requirement.
Optional Features	IBR, Locking Arrangement, Jacketed, Cryogenic, Stem Extension
